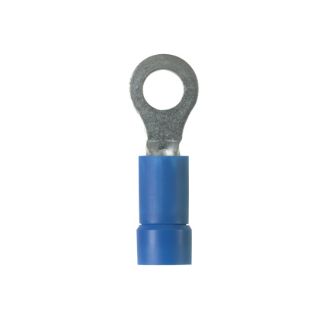

Actual Product May Vary From Image

EV14-14RB-L PAN

Name: EV14-14RB-L PAN
Brand: Panduit
SKU: EV14-14RB-L PAN
Price: 0.32 USD
Availability: OutOfStock

Panduit® EV14-14RB-L Type EV-RB Ring Terminal, 16 to 14 AWG Conductor, 1.12 in L, Butted Seam/Funnel Entry Barrel, Blue

Manufacturer: Panduit

Manufacturer part number: EV14-14RB-L

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.32

This product has a minimum quantity of 50

Qty:

Product Details

Brand Name

Panduit®

Type

Type EV-RB

Description

Panduit®, EV14-14RB-L, Ring Terminal, Type EV-RB, Stranded Copper Conductor, 16 to 14 AWG Conductor, 1/4 in Stud, 1.12 in Length, Butted Seam/Funnel Entry Barrel, 11.7 mm W x 0.032 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Maximum Wire Insulation, 0.38 in Clearance, 221 deg F, Tin Plated, Blue, 0.46 in W Dimensions

Application

General Purpose Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Brazed seam protects terminal barrel from splitting during the crimp process
Barrel of terminal internally beveled to provide quick and easy wire insertion
Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
Without insulation

Specifications

Barrel Type:	Brazed Seam/Butted Seam/Funnel Entry/Internal Serration
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.46 in W
Finish:	Tin Plated
Length:	1.12 in
Material:	Copper
Specifications:	5/16 in L Wire Strip, 0.17 in Dia Maximum Wire Insulation, 0.38 in Clearance
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.46 in W x 0.032 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
