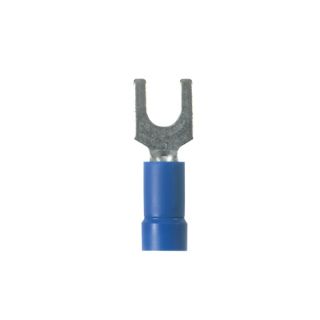

Actual Product May Vary From Image

EV14-8FB-Q PAN

Name: EV14-8FB-Q PAN
Brand: Panduit
SKU: EV14-8FB-Q PAN
Price: 0.30 USD
Availability: OutOfStock

Panduit® EV14-8FB-Q PV Series Insulated Fork Terminal, 16 to 14 AWG Conductor, 0.9 in L, Butted Seam/Funnel Entry Barrel, Copper, Blue

Manufacturer: Panduit

Manufacturer part number: EV14-8FB-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.30

Qty:

Product Details

Brand Name

Panduit®

Type

Insulated

Description

Panduit®, EV14-8FB-Q, Fork Terminal, Insulated, Series: PV Series, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.9 in Length, Butted Seam/Funnel Entry Barrel, Standard Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Maximum Wire Vinyl Insulation, 221 deg F, Copper, Tin Plated, Blue, 0.9 in L x 0.31 in W Dimensions

Application

For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Standards

Features

Fork design provides for fast and easy installation, without the need to remove fastener
Internal barrel serrations assure good wire contact and maximum tensile strength
Barrel of terminal internally beveled to provide quick and easy wire insertion
Brazed seam protects terminal barrel from splitting during the crimp process
For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Specifications

Barrel Type:	Butted Seam/Funnel Entry
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.9 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.9 in
Material:	Copper
Series:	PV Series
Specifications:	0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 7/32 in L Wire Strip
Stud Size:	#8
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Fork
Voltage Rating:	600 V
