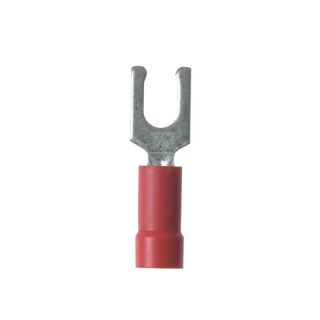

Picture of EV18-10LFB-Q PAN
Actual Product May Vary From Image

EV18-10LFB-Q PAN

Panduit® EV18-10LFB-Q PV-LF Insulated Fork Terminal, 22 to 18 AWG Conductor, 0.97 in L, Beveled Edge/Butted Seam/Funnel Entry/Serrated/Standard Barrel, Copper, Red
Manufacturer: Panduit
Manufacturer part number: EV18-10LFB-Q
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 25
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$0.27

Product Details

Brand Name

Panduit®

Type

Insulated

Description

Panduit®, EV18-10LFB-Q, Fork Terminal, Insulated, Series: PV-LF, Stranded Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.97 in Length, Beveled Edge/Butted Seam/Funnel Entry/Serrated/Standard Barrel, Locking Fork Tongue, 0.33 in W x 0.032 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.15 in Dia Maximum Wire Vinyl Insulation, 221 deg F, Copper, Tin Plated, Red, 0.97 in L x 0.33 in W Dimensions

Application

For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Standards

ARRA Compliant | Buy American Act Compliant | CSA File No. LR31212 | cULus 587H File No. E52164 | RoHS Compliant | UL 587H File No. E52164 | UL94 V-0 Flammability Rated

Features

  • Locks in place for secure connection
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Specifications

Barrel Type:Beveled Edge/Butted Seam/Funnel Entry/Internal Serration
Color:Red
Conductor Size:18 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:0.97 in L x 0.33 in W
Finish:Tin Plated
Length:0.97 in
Material:Copper
Series:PV-LF
Specifications:0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.33 in W x 0.032 in THK
Tongue Type:Locking Fork
Voltage Rating:600 V
