EYS216 CRH

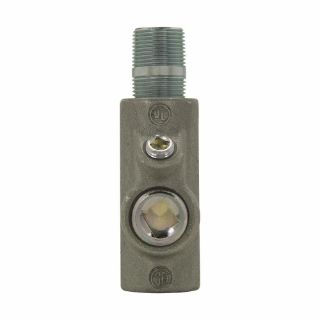

Picture of EYS216 CRH
Actual Product May Vary From Image

Product Details

Manufacturer:
Crouse-Hinds
Manufacturer part number:
EYS216
CBT Inventory
2
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
2
CBT - LEXINGTON
0
Availability:
2 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$54.19 / EA

Description

Brand Name

Crouse-Hinds

Type

Male/Female Hub

Description

Crouse-Hinds series EYS and EZS explosionproof sealing fittings restrict the passage of gases, vapors or flames from one portion of the electrical installation to another, limit explosions to the sealed off enclosure, and limit pre-compression or pressure piling in conduit systems. EYS sealing fittings are available for installation in either vertical only or in both horizontal or vertical positions. They are available in a variety of materials, including Feraloy iron alloy and/or ductile iron, copper-free aluminum and stainless steel. EZS sealing fittings are designed for installation at any angle; the covers with opening for sealing compound can be properly positioned to accept the compound.
Crouse-Hinds Conduit Sealing Fitting, Male/Female Hub, Series: EYS, 3/4 in, Feraloy® Iron Alloy, Electrogalvanized, 3-12/16 in H x 1-1/2 in W

Application

For limiting pre-compression or pressure piling in conduit systems and industrial facilities and factories

Standards

Class I Div 1 and 2 Group A, B, C, D | Class II Div 1 Group E, F, G | Class II Div 2 Group F, G, Class III | UL 886 | UL 1203 | CSA C22.2

Features

  • Minimum turning radius
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Integral bushings in conduit hubs to protect conductor insulation from damage
  • Taper tapped hubs to ensure ground continuity
  • For sealing in vertical or horizontal position

Specifications

Country of Origin:IN
Dimensions:1-1/4 in W x 3-11/16 in H
Finish:Aluminum Acrylic Painted/Electro-Galvanized
Material:Ductile Iron/Feraloy® Iron Alloy
Series:EYS
Size:3/4 in
Suitable For Use With:Vertical/Horizontal Positions
