FLCS2/9SOCPXAQ PAN

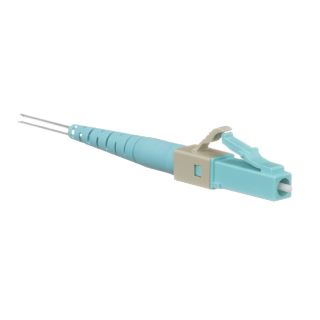

Picture of FLCS2/9SOCPXAQ PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
FLCS2/9SOCPXAQ
CBT Inventory
2
Vendor Inventory
Loading...
CBT - Cincinnati
2
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$26.40 / EA

Description

Brand Name

Panduit®

Type

Fusion Splice-On

Description

LC and SC form factor fusion-splice connectors shall be TIA/EIA-604 FOCIS-3 (for SC) and FOCIS-10 compatible (for LC) and include a pre-polished fiber which eliminates the need for field polishing and adhesives. The connectors shall be composed of a ferrule assembly with integral fiber, a front housing and a rear assembly, plus additional components as necessary by connector type (including angled physical contact polish). The connectors shall exceed TIA/EIA-568-D.3 performance requirements for IL and RL and have a functional temperature range from -40 to 75 deg C. These splice-on connectors shall be compatible with Sumitomo brand splice units.
Panduit®, FLCS2/9SOCPXAQ, Fiber Optic Connector, Fusion Splice-On, LC Simplex Connector, 50/125 um OM2/OM3/OM4 Multi-Mode Fiber, 250 um Coated Fiber/900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Aqua

Application

For initial installation of fiber links, MAC work or repairs to existing links to minimize downtime

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA 568-B.3/604 FOCIS-10

Features

  • Quick installation - the LC and SC splice-on connectors for 250 um and 900 um cable can be terminated in under two minutes per connector
  • Reliable performance - superior components mean better performing links with less down time
  • Superior function - factory pre-polished end-faces and no index-matching gel enable installation almost anywhere
  • The LC and SC splice-on connectors for 250 um and 900 um cable can be terminated in under two min per connector
  • Superior components mean better performing links with less down time
  • Factory pre-polished end-faces and no index-matching gel enable installation almost anywhere

Specifications

Cable Construction:250 um Coated Fiber/900 um Tight Buffered Fiber
Color:Aqua
Connector Type:LC Simplex
Ferrule Type:Zirconia Ceramic
Fiber Type:50/125 um OM2/OM3/OM4 Multi-Mode
