Actual Product May Vary From Image

FLCSMC6EOR PAN

Name: FLCSMC6EOR PAN
Brand: Panduit
SKU: FLCSMC6EOR PAN
Availability: InStock

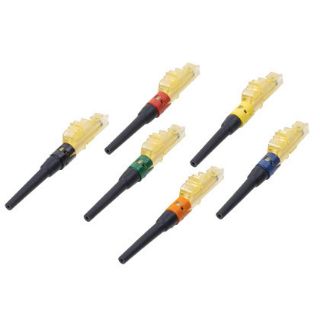

Panduit® FLCSMC6EOR Keyed E Pre-Polished Fiber Optic Connector, LC Simplex Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um Tight Buffered, Zirconia Ceramic Ferrule

Manufacturer: Panduit

Manufacturer part number: FLCSMC6EOR

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
102	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

Keyed E Pre-Polished

Description

Keyed LC small form factor (SFF) pre-polished connectors shall exceed TIA/EIA-568-B.3 performance requirements and contain a factory terminated fiber, eliminating field polishing and adhesive. Keyed LC pre-polished connectors shall be mechanically keyed with color specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. Keyed LC pre-polished connectors shall have an average insertion loss 0.3 dB per mated pair for multimode and singlemode fiber. Keyed LC pre-polished connectors shall captivate fiber and buffer in one action allowing for up to two re-terminations with no degradation in performance.

Panduit®, FLCSMC6EOR, Fiber Optic Connector, Keyed E Pre-Polished, LC Simplex Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um Tight Buffered Cable, Zirconia Ceramic Ferrule, Plastic, Orange

Application

For maintenance or emergency restoration of secure fiber networks and retrofit/initial install of behind the wall (BTW) connections and the permanent side of interconnect and cross-connect patch fields

Standards

ARRA Compliant | Buy American Act Compliant | TIA/EIA 568-B.3

Features

Color specific keys with positive and negative keying features
Factory pre-polished fiber stub endface
Dual cam design with fiber and buffer clamps
Translucent housing assembly (laser marked)
Non-optical disconnect design
Universal termination tool with integrated visual termination indicator (VTI)
0.3 dB average insertion loss
>20 dB return loss

Specifications

Cable Construction:	900 um Tight Buffered
Color:	Orange
Connector Type:	Keyed LC Simplex
Country of Origin:	CR
Ferrule Type:	Zirconia Ceramic
Fiber Type:	62.5/125 um OM1 Multi-Mode
Material:	Plastic
