FLNR060 LIT

Name: FLNR060 LIT
Brand: Littelfuse
SKU: FLNR060 LIT
Price: 18.68 USD
Availability: OutOfStock

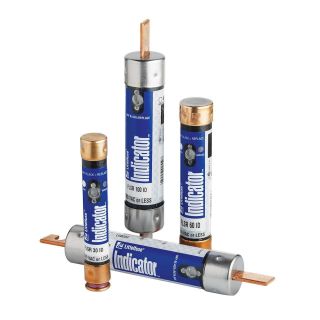

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

FLNR060

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$18.68 / EA

Description

Brand Name

Littelfuse®

Type

Current Limiting

Alternate Supplier #

Grainger - 486K96

Description

Littelfuse® FLNR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLNR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses.

Littelfuse®, FLNR060, Time Delay Fuse, Current Limiting, Series: FLNR, Non-Indicating, Rejection, 60 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class: RK5, 3400 A Short Circuit, 50/60 Hz Frequency, 10 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Dual Element, Fiber, 13/16 in Dia x 3 in L Body

Application

Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains, Motor Branch Circuits and All General Purpose Circuits Applications

Standards

UL 248-12 | E81895 | CSA LR29862 | Federal Specification WF-1814 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Reliable interruption of all over currents up to 200 kA
Faster acting short circuit protection than any non-current limiting mechanical protective device
Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
300 kA rms symmetrical self certified
Bronze caps
Industrial cylindrical cartridge fuses
200000 AIR - Reliable interruption of all overcurrents up to 200000 A
LFR60 and LFR25 series recommended fuse holders
Slo-blo/time lag (T)/time delay opening

Specifications

Amperage Rating:	60 A
Body Size:	13/16 in Dia x 3 in L
Body Type:	Cylindrical
Class:	RK5
Country of Origin:	MX
Element:	Dual
Frequency Rating:	50/60 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200/20 kA
Material:	Fiber
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s
Series:	FLNR
Short Circuit Current Rating:	3400 A
Terminal Type:	Ferrule
Voltage Rating:	250 VAC/125 VDC

Customers who bought this item also bought

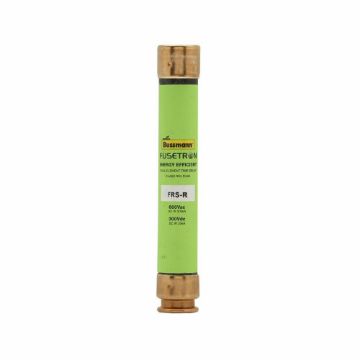

FRS-R-4 BSF
