FLSR030ID LIT

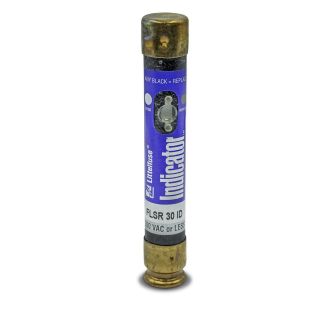

Picture of FLSR030ID LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
FLSR030ID
product.name:
FLSR030ID LIT
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$25.10 / EA

Description

Brand Name

Littelfuse®

Type

Current Limiting

Description

Littelfuse® FLSR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses.
Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: FLSR, Indicating, Rejection, 30 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK5, 50/60 Hz Frequency, 10 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Dual Element, Composite, 13/16 in Dia x 5 in L Body

Application

Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains, Motor Branch Circuits and All General Purpose Circuits Applications

Standards

UL 248-12 | E81895 | CSA LR29862 | Federal Specification WF-1814 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Reliable interruption of all over currents upto 200 kA
  • Faster acting short circuit protection than any non-current limiting mechanical protective device
  • Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
  • 300 kA rms symmetrical self certified
  • Bronze caps
  • Industrial cylindrical cartridge fuses

Specifications

Amperage Rating:30 A
Body Size:13/16 in Dia x 5 in L
Body Type:Cylindrical
Class:RK5
Country of Origin:MX
Element:Dual
Frequency Rating:50/60 Hz
Indicating/Non-Indicating:Indicating
Interrupt Rating:200/20 kA
Material:Composite
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:10 s
Series:FLSR
Terminal Type:Ferrule
Voltage Rating:600 VAC/300 VDC

Products Specifications

Amperage Rating
30 A
Brand Name
Littelfuse
Type
Time-Delay Fuse
Voltage Rating
600 VAC/300 VDC
