FLUKE-3540 FC KIT FLU

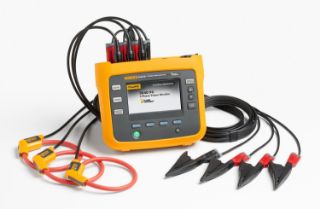

Picture of FLUKE-3540 FC KIT FLU
Actual Product May Vary From Image

Product Details

Manufacturer:
Fluke
Manufacturer part number:
FLUKE-3540-FC-KIT
product.name:
FLUKE-3540 FC KIT FLU
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
$4,140.00 / EA

Description

Brand Name

Fluke®

Description

The 3540 FC 3-phase power monitor and condition monitoring kit is a combination of the 3540 FC 3-phase power monitor and Fluke® Connect™ condition monitoring (FCCM) software. The 3540 FC 3-phase power monitor is a compact device used to monitor key electrical parameters at 3-phase machinery and seamlessly stream data to the Fluke® connect cloud. Once in the cloud, the software allows maintenance teams to remotely view data anytime, anywhere. Users can graph asset data to discover measurement trends and send alarms when values are outside user set thresholds.
Fluke® Power Monitor and Condition Monitoring Kit, 100 to 500 VAC, 50/60 Hz Frequency, 50 VA Power, Power Factor: 0.8, 4.3 in LCD Display, 3 ph, Lithium-Ion Battery, 2500 mAh Battery, IP50 Enclosure, 7.8 in W x 4 in D x 6.6 in H Dimensions

Application

Measure Single, Split/3-Phase Loads, Current, Voltage, Frequency, Total Harmonic Distortion, Power Including Active, Non-Active Power and Power Factor Applications

Standards

RoHS Compliant | IEC 61010-1 | MIL-T-28800E Type 3 Class III Style B | IEC 61326-1 | ECCN: 3A992 | PROP65: This product is in Compliant with PROP65; it is not known to contain any chemicals associated with this regulation

Features

  • See data real time and historical data in graphs to quickly identify trends and fluctuations
  • Receive alerts and alarms to your mobile device
  • Wireless data collection or internal memory sufficient for 1 week with 1 second data intervals
  • Remotely monitor real-time and historical power variable data
  • Visualize data with software trending, graphing, and time boxing
  • Auto-generated alarms when power variables deviate from pre-set thresholds
  • Portable device offers scalable, remote power monitoring solution
  • View power measurements from a safe distance
  • Wirelessly collect real-time power values
  • Make data-driven decisions

Includes

Fluke 3540 FC 3-Phase Power Monitor, 3-Phase+N Voltage Test Lead, (4) Black Dolphin Clips, (3) 12 in 173x-flex1500 iFlex Current Probe, Set of Color Coded Wire Clips, Mains Power Cable, (2) 3.9 in Test Leads with Stackable Plugs, (2) 6.6 ft Test Leads with Stackable Plugs, DC Power Cable, Input Connector Decal, 4 GB USB Flash Drive, WiFi to USB Adapter, Magnet Hanger Kit and Documentation Info Pack

Specifications

Battery Capacity:2500 mAh
Battery Type:Lithium-Ion
Country of Origin:RO
Dimensions:7.8 in W x 4 in D x 6.6 in H
Display Type:4.3 in LCD
Enclosure Type:IP50
Frequency Rating:50/60 Hz
Phase:3
Power Factor:0.8
Power Rating:50 VA
Voltage Rating:100 to 500 VAC
