FLUKE-789 FLU

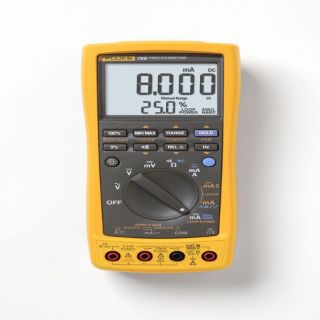

Picture of FLUKE-789 FLU
Actual Product May Vary From Image

Product Details

Manufacturer:
Fluke
Manufacturer part number:
FLUKE-789
CBT Inventory
1
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
1
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,444.99 / EA

Description

Brand Name

Fluke®

Alternate Supplier #

Grainger - 3MU89
MSC - 70541263

Description

The Fluke 787 was the first tool to combine a DMM and a loop calibrator to give process technicians double the power in one tool. Now it's even better, the range is extended with the Fluke 789 the ultimate loop calibration multimeter. The Fluke 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. And with its built-in, selectable 250-Ohm Hart® resistor, it also eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less.
Fluke® Process Meter, 0 to 1000 VAC/VDC Loop, 0 to 1 A Loop, Multi-Line LCD Display, 7.35 in L x 3.41 in W x 1.25 in H Size, Plastic

Application

For measuring electrical parameters, supplying steady or ramping current to test process instruments and providing a 24 V loop power supply

Standards

ECCN: EAR99 | EN61010-1 CAT III/EN61010-1 CAT IV | ANSI/ISA S82.01-1994 | CAN/CSA C22.2 File No. 1010.1-92 | UL 950 Z | PROP65:This product is in Compliant with PROP65; it is not known to contain any chemicals associated with this regulation

Features

  • 24 V loop power supply
  • Very large dual display
  • Enhanced backlight with 2 brightness settings
  • 1200 ohm drive capability on mA source
  • HART mode setting with loop power and a built-in 250 ohm resistor
  • 0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Externally accessible fuses for easy replacement
  • Infrared-port to process data in FlukeView Forms (V2.1) software
  • Precision 1000 V, 440 mA true RMS digital Multimeter
  • 0.1% dc voltage accuracy, 0.05% dc current accuracy
  • Frequency measurement to 20 kHz
  • Min/max/average/hold/relative modes
  • Diode test and continuity beeper
  • Simultaneous mA and % of scale readout
  • 20 mA dc current source/loop calibrator/simulator
  • Manual step (100%, 25%, coarse, fine) plus auto step and auto ramp
  • Externally accessible battery for easy battery changes
  • Display current and % of span, auto step, auto ramp
  • -20 to 55 deg C operating, -40 to 60 deg C storage temperature, 95% upto 30 deg C, 75% upto 40 deg C, 45% upto 50 deg C, 35% upto 55 deg C humidity

Includes

(4) AA Batteries, Test Leads, Alligator Clips and Instructions

Specifications

Country of Origin:US
Display Type:Multi-Line LCD
Loop Amperage Rating:0 to 1 A
Loop Voltage Rating:0 to 1000 VAC/VDC
Material:Plastic
Size:7.35 in L x 3.41 in W x 1.25 in H

Customers who bought this item also bought

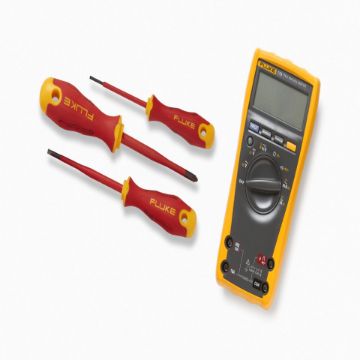

Picture of FLUKE-179 FLU
