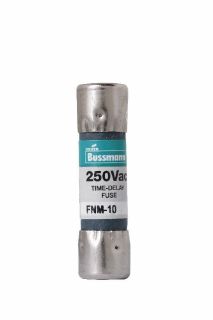

Actual Product May Vary From Image

FNM-10 BSF

Name: FNM-10 BSF
Brand: Bussmann
SKU: FNM-10 BSF
Price: 31.72 USD
Availability: InStock

Bussmann Fusetron™ FNM-10 Low Voltage Supplemental Time Delay Midget Fuse, 10 A, 250 VAC, 200 A Interrupt, Class: Supplemental, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: FNM-10

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	11
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$31.72

Qty:

Product Details

Brand Name

Bussmann

Type

Low Voltage Supplemental Time Delay

Description

Bussmann Fusetron™ Midget Fuse, Low Voltage Supplemental Time Delay, Series: FNM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 250 VAC, 200 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Bronze/Fiberglass, Green, 13/32 in Dia x 1-1/2 in L Body Size

Application

General Purpose Circuits, Lighting Circuit Protection and Meter Circuits, Safety and Security Systems

Standards

Features

Low cost supplemental protection of 125/250 VAC inductive circuits
Upgrading to Low-Peak™ class CC product will reduce SKU investment and minimize potential for misapplying fuse
Nickel plated end caps
Nickel plated brass end caps

Specifications

Amperage Rating:	10 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cartridge
Class:	Supplemental
Color:	Green
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 A
Material:	Bronze/Fiberglass
Mounting Type:	Holder
Rejection/Non-Rejection:	Non-Rejection
Series:	FNM
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
