FNM-5 BSF

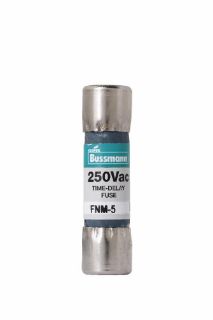

Picture of FNM-5 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
FNM-5
CBT Inventory
17
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
17
CBT - LEXINGTON
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
$26.90 / EA

Description

Brand Name

Bussmann

Type

Low Voltage Supplemental Time Delay

Description

Bussmann Fusetron™ Midget Fuse, Low Voltage Supplemental Time Delay, Series: FNM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 250 VAC, 200 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Bronze/Fiberglass, Green, 13/32 in Dia x 1-1/2 in L Body Size

Application

General Purpose Circuits, Lighting Circuit Protection and Meter Circuits, Safety and Security Systems

Standards

CE Certified | CSA 1422-01 | CSA File No. 53787 | RoHS Compliant | UL 248-14 | UL File No. E19180 | UL Guide JDYX

Features

  • Low cost supplemental protection of 125/250 VAC inductive circuits
  • Upgrading to Low-Peak™ class CC product will reduce SKU investment and minimize potential for misapplying fuse
  • Nickel plated end caps
  • 10 kA at 125 VAC interrupt rating

Specifications

Amperage Rating:5 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cartridge
Class:CC/Supplemental
Color:Green
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 A
Material:Bronze/Fiberglass
Mounting Type:Holder
Rejection/Non-Rejection:Non-Rejection
Series:FNM
Terminal Type:Ferrule
Voltage Rating:250 VAC
