Picture of FNQ-R-1 BSF
Actual Product May Vary From Image

FNQ-R-1 BSF

Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Manufacturer: Bussmann
Manufacturer part number: FNQ-R-1
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 9
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$72.07

Product Details

Brand Name

Bussmann

Type

Current Limiting High Inrush Time Delay

Alternate Supplier #

Grainger - 6F111
Fastenal - 0760525

Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection
Bussmann CC-Tron® Fuse, Current Limiting High Inrush Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

Application

Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Line Protection and Small Control Transformers Applications

Standards

CE Certified | CSA 1422-01 | CSA Certified | CSA File No. 53787-HRC-MISC | RoHS Compliant | UL 248-4 | UL File No. E4273 | UL Guide JDDZ

Features

  • Time delay compatible with inrush characteristic of small control transformers
  • Current limitation at class CC levels provides maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Nickel plated brass end caps

Specifications

Amperage Rating:1 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cylindrical
Class:CC
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Melamine
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:12 s at 200%
Series:FNQ-R
Terminal Type:Ferrule
Voltage Rating:600 V

Resources

Video
Customers who bought this item also bought

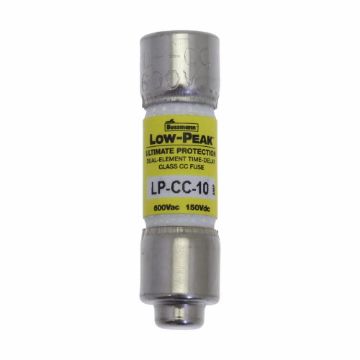

Picture of LP-CC-10 BSF
