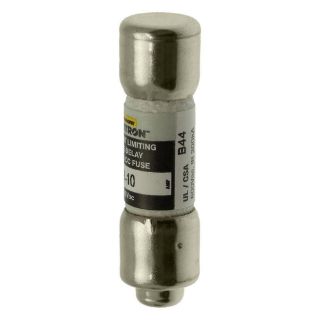

Actual Product May Vary From Image

FNQ-R-10 BSF

Name: FNQ-R-10 BSF
Brand: Bussmann
SKU: FNQ-R-10 BSF
Price: 77.66 USD
Availability: InStock

Bussmann Limitron™ CC-Tron® FNQ-R-10 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 10 A, 600 V, 200 kA Interrupt, CC Class, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: FNQ-R-10

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	12
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$77.66

Qty:

Product Details

Brand Name

Bussmann

Type

Advanced Protection Current Limiting High Inrush Low Voltage

Alternate Supplier #

Grainger - 6F122
Fastenal - 0760528

Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann Limitron™ CC-Tron® Time Delay Fuse, Advanced Protection Current Limiting High Inrush Low Voltage, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 10 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Application

Branch Circuit, Line Protection, Small Control Transformers and Industrial Control, Isolated, In-Line Fuse Holders, Safety and Security Systems

Standards

Features

Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
Fast acting fuse helps prevent equipment damage caused by short circuit events
Rejection type fuse fits both standard and rejection style holders
The class CC FNQ-R Limitron fuse meets the needs of control circuit transformer protection
FNQ-R fuses can be sized according to NEC and UL requirements and still allow the high inrush currents, with significantly more time delay than the UL minimum value of 12 s at 200% for class CC fuses
Nickel plated brass end caps
200 kA AC (RMS symmetrical)

Specifications

Amperage Rating:	10 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cartridge
Class:	CC
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	12 s at 200%
Series:	FNQ-R
Terminal Type:	Ferrule
Voltage Rating:	600 V
