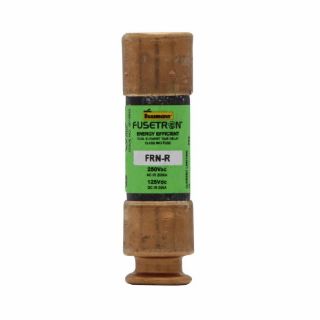

Actual Product May Vary From Image

FRN-R-4 BSF

Name: FRN-R-4 BSF
Brand: Bussmann
SKU: FRN-R-4 BSF
Price: 46.32 USD
Availability: InStock

Bussmann Fusetron™ FRN-R-4 Advanced Protection Current Limiting Energy Efficient Low Voltage Time Delay Fuse, 4 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: FRN-R-4

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	10
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$46.32

Qty:

Product Details

Brand Name

Bussmann

Type

Advanced Protection Current Limiting Energy Efficient Low Voltage

Alternate Supplier #

Grainger - 4A451

Description

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

Bussmann Fusetron™ Time Delay Fuse, Advanced Protection Current Limiting Energy Efficient Low Voltage, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 4 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size

Application

Branch Circuit, Power Panelboard, Motor Control Centers, Combination Starter and Machinery Disconnects, Safety and Security Systems

Standards

CE Certified | CSA 1422-02/File No. 53787 | CSA C22.2 No. 248.12 | UL 248-12/File No. E4273 | UL Guide JDDZ

Features

Provides motor overload, ground fault and short circuit protection
Helps protect motors against burnout from overloads
Helps protect motors against burnout from single phasing on 3 ph systems
Simplifies and improves blackout prevention (selective co-ordination ratios)
Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s

Specifications

Amperage Rating:	4 A
Body Size:	0.56 in Dia x 2 in L
Body Type:	Cartridge
Class:	RK5
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20/200 kA
Material:	Fiberglass
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s at 500%
Series:	FRN-R
Terminal Type:	Ferrule
Voltage Rating:	250 VAC/125 VDC
