FWC-16A10F BSF

Name: FWC-16A10F BSF
Brand: Bussmann
SKU: FWC-16A10F BSF
Price: 78.41 USD
Availability: InStock

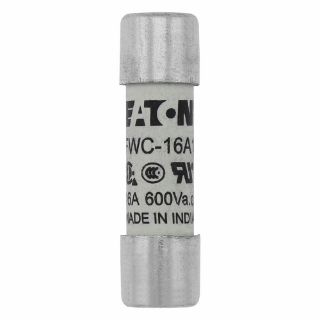

Bussmann FWC-16A10F Fast Acting High Speed Fuse, 16 A, 600 VAC, 50 kA Interrupt, Class: aR, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: FWC-16A10F

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	10
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$78.41

Qty:

Product Details

Brand Name

Bussmann

Type

Fast Acting

Alternate Supplier #

Grainger - 1EH54

Description

Eaton's Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class

Bussmann High Speed Fuse, Fast Acting, Series: FWC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 16 A, 600 VAC, 50 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.406 in Dia x 1.5 in L Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA 1422-30 (53787) | UL File No. E91958 | UL Guide JFHR8 | UL Recognized

Features

Excellent cycling capability and DC performance
Low arc voltage and low energy let-through
Low wattage loss in a compact size
Used with finger safe holders/blocks

Specifications

Amperage Rating:	16 A
Body Size:	0.406 in Dia x 1.5 in L
Body Type:	Cylindrical
Class:	aR
Country of Origin:	IN
Element:	Single
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 kA
Material:	Ceramic
Mounting Type:	Holder
Rejection/Non-Rejection:	Non-Rejection
Series:	FWC
Terminal Type:	Ferrule
Voltage Rating:	600 VAC
