Actual Product May Vary From Image

FWC-30A10F BSF

Name: FWC-30A10F BSF
Brand: Bussmann
SKU: FWC-30A10F BSF
Price: 70.39 USD
Availability: InStock

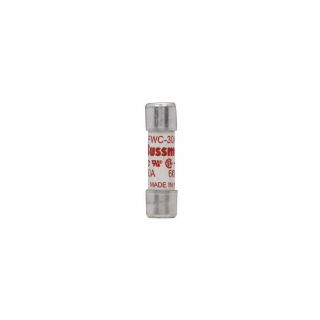

Bussmann FWC-30A10F Fast Acting High Speed Fuse, 30 A, 500 VAC/VDC, 50/200 kA Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: FWC-30A10F

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$70.39

Qty:

Product Details

Brand Name

Bussmann

Type

Fast Acting

Description

Eaton's Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class

Bussmann High Speed Fuse, Fast Acting, Series: FWC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 500 VAC/VDC, 50/200 kA Interrupt, 45 to 1000 Hz, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Ceramic, 0.406 in Dia x 1.5 in L Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA Certified | UL Listed | UL Recognized

Features

Excellent cycling capability and DC performance
Low arc voltage and low energy let through
Low watts loss in a compact size
Superior cycling capability
Used with finger safe holders/blocks

Specifications

Amperage Rating:	30 A
Body Size:	0.406 in Dia x 1.5 in L
Body Type:	Cartridge
Class:	aR
Country of Origin:	IN
Element:	Single
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 kA
Material:	Ceramic
Mounting Type:	Holder
Rejection/Non-Rejection:	Non-Rejection
Series:	FWC
Terminal Type:	Ferrule
Voltage Rating:	500 VAC/VDC
