FWH-50B BSF

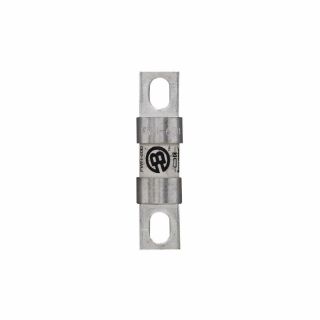

Picture of FWH-50B BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
FWH-50B
CBT Inventory
10
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
10
CBT - LEXINGTON
0
Availability:
Expected Leadtime 33 days
Estimated dates are contingent upon manufacturer stock.
$180.19 / EA

Description

Brand Name

Bussmann

Type

Fast Acting

Alternate Supplier #

Grainger - 6F389

Description

Eaton's Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class
Bussmann High Speed Fuse, Fast Acting, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 50 A, 500 VAC, 200 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 0.813 in Dia x 3.188 in L Body Size

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CE Certified | CSA 1422-30/File No. 53787 | UL File No. E91958 | UL Guide JFHR2 | UL Listed | UL Recognized

Features

  • Excellent DC performance
  • Low arc voltage and low energy let through
  • Superior cycling capability
  • Used with finger safe holders/blocks

Specifications

Amperage Rating:50 A
Body Size:0.813 in Dia x 3.188 in L
Body Type:Cylindrical
Country of Origin:IN
Element:Single
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Stud
Rejection/Non-Rejection:Non-Rejection
Series:FWH
Terminal Type:Blade
Voltage Rating:1200 V
