Actual Product May Vary From Image

FWH-60B BSF

Name: FWH-60B BSF
Brand: Bussmann
SKU: FWH-60B BSF
Price: 180.19 USD
Availability: InStock

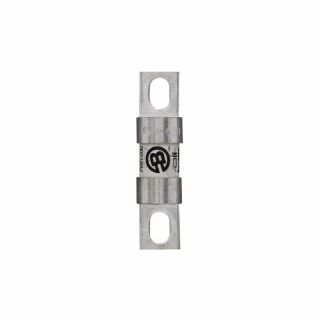

Bussmann FWH-60B Fast Acting High Speed Fuse, 60 A, 500 VAC, 50 kA Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: FWH-60B

Availability: Expected Leadtime 33 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	3
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$180.19

Qty:

Product Details

Brand Name

Bussmann

Type

Fast Acting

Alternate Supplier #

Grainger - 6F390

Description

Eaton's Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class

Bussmann High Speed Fuse, Fast Acting, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 60 A, 500 VAC, 50 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 0.813 in Dia x 3.188 in L Body Size

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

Features

Excellent DC performance
Low arc voltage and low energy let through
Superior cycling capability
Used with finger safe holders/blocks

Specifications

Amperage Rating:	60 A
Body Size:	0.813 in Dia x 3.188 in L
Body Type:	Cylindrical
Country of Origin:	IN
Element:	Single
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 kA
Material:	Ceramic
Mounting Type:	Stud
Rejection/Non-Rejection:	Non-Rejection
Series:	FWH
Terminal Type:	Blade
Voltage Rating:	1000 VDC
