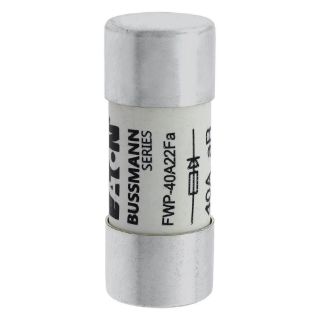

Actual Product May Vary From Image

FWP-40A22F BSF

Name: FWP-40A22F BSF
Brand: Bussmann
SKU: FWP-40A22F BSF
Price: 203.26 USD
Availability: InStock

Bussmann FWP-40A22F Fast Acting High Speed Fuse, 40 A, 700 VAC, 200 kA Interrupt, Class: aR, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: FWP-40A22F

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	12
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$203.26

Qty:

Product Details

Brand Name

Bussmann

Type

Fast Acting

Alternate Supplier #

Grainger - 49ZU46

Description

Eaton's Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class

Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 40 A, 700 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

Features

Excellent cycling capability and DC performance
Low arc voltage and low energy let through
Low wattage loss in a compact size
Used with finger safe holders/blocks
200 kA at 690/700 VAC, 50 kA at 500 VDC interrupt rating
Without striker

Specifications

Amperage Rating:	40 A
Body Size:	0.875 in Dia x 2.283 in L
Body Type:	Cartridge/Cylindrical
Class:	AR
Color:	White
Element:	Single
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Holder
Rejection/Non-Rejection:	Non-Rejection
Series:	FWP
Terminal Type:	Ferrule
Voltage Rating:	700 VAC/VDC
