Actual Product May Vary From Image

FWP-50A14F BSF

Name: FWP-50A14F BSF
Brand: Bussmann
SKU: FWP-50A14F BSF
Price: 188.83 USD
Availability: InStock

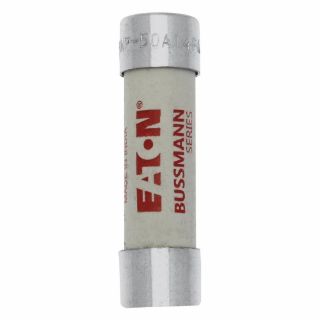

Bussmann FWP-50A14F Fast Acting High Speed Fuse, 50 A, 700 VAC/800 VDC, 50/200 kA Interrupt, Class: AR, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: FWP-50A14F

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	14
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$188.83

Qty:

Product Details

Brand Name

Bussmann

Type

Fast Acting

Description

Eaton's Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class

Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 50 A, 700 VAC/800 VDC, 50/200 kA Interrupt, Class: AR, 45 to 1000 Hz, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CE Certified | CSA Certified | RoHS Compliant | UL Listed | UL Recognized

Features

Excellent cycling capability and DC performance
Low arc voltage and low energy let through
Low watts loss in a compact size
Superior cycling capability
Used with finger safe holders/blocks

Specifications

Amperage Rating:	50 A
Body Size:	0.563 in Dia x 2 in L
Body Type:	Cartridge
Class:	aR
Country of Origin:	IN
Element:	Single
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 kA
Material:	Ceramic
Mounting Type:	Holder
Rejection/Non-Rejection:	Non-Rejection
Series:	FWP
Terminal Type:	Ferrule
Voltage Rating:	700 VAC
