GFRST15W HWD

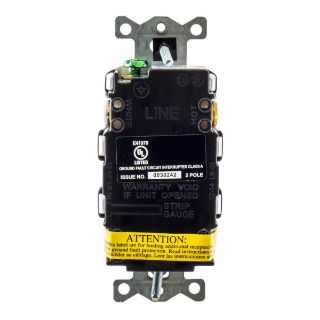

Picture of GFRST15W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
GFRST15W
CBT Inventory
11
Vendor Inventory
Loading...
CBT - Cincinnati
11
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$17.97 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Self-Test Screw Mount

Alternate Supplier #

Grainger - 39EA20

Description

Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
Wiring Device-Kellems, GFRST15W, GFCI Receptacle, 1-Phase Grounding Self-Test Screw Mount, 125 VAC, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial Grade, -35 to 66 deg C, Screw Terminal, Thermoplastic/Composite, White, 1.75 in W x 1.47 in D x 3.27 in H Dimensions

Application

Power Protection and Indoor Dry Environment Applications

Standards

UL 498, 943 | CSA Certified | ADA NEC | NEMA WD6 | RoHS Compliant | UL 943 Class A | UL No. File No. E41978 | CEC Approved | ANSI 73

Features

  • Internal back wiring clamp and guide for quick and secure termination
  • Night light option includes light sensor controls for automatic ON and OFF, custom dual lens for optimum light output
  • Brass power contacts and ground contacts
  • Zinc plated steel mounting strap and mounting screws
  • Terminal screws connection
  • Patented AUTOGUARD® self test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Triple wipe construction

Includes

Multiple Drive Screw

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:CN
Dimensions:1.75 in W x 1.47 in D x 3.27 in H
Frequency Rating:60 Hz
Grade:Commercial
Horsepower:1/2 hp
Material:Thermoplastic/Composite
NEMA Rating:5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
