GFRST20W HWD

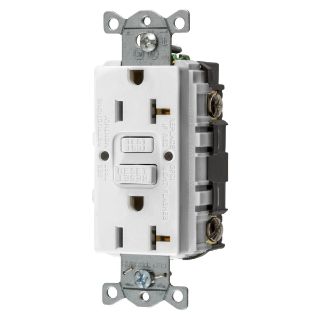

Picture of GFRST20W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
GFRST20W
CBT Inventory
1
Vendor Inventory
Loading...
CBT - Cincinnati
1
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$19.53 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Auto Grounding Decorator Duplex Heavy Duty Self-Test Standard

Description

Wiring Device-Kellems AUTOGUARD® GFCI Receptacle, 1-Phase Auto Grounding Decorator Duplex Heavy Duty Self-Test Standard, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -30 to 150 deg F, Back/Side Wire Terminal, Composite/Thermoplastic, White, 3.27 in H x 1.75 in W x 1.47 in D Dimensions

Application

Dry Location and Indoor Applications

Standards

RoHS Compliant | ANSI 73 | UL 498/943 File No. E41978 | CSA Certified | NEMA WD6 | NEC | CEC Approved

Features

  • Patented AUTOGUARD® self test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Internal back wiring clamp and guide for quick and secure termination
  • Triple wipe construction

Includes

Multiple Drive Screw

Specifications

Amperage Rating:20 A
Color:White
Country of Origin:CN
Dimensions:1.75 in W x 1.47 in D
Frequency Rating:60 Hz
Grade:Commercial
Horsepower:1 hp
Material:Composite/Thermoplastic
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-30 to 150 deg F
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
