GIB150L4AC APN

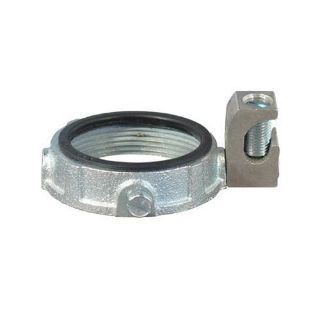

Picture of GIB150L4AC APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
GIB-150L-4AC
CBT Inventory
2
Vendor Inventory
Loading...
CBT - CINCINNATI
2
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
2 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$17.22 / EA

Description

Brand Name

Appleton®

Description

Appleton® Grounding Bushing, Series: GIB-L-AC, 14 to 4 AWG AC Cable Size, 1-1/2 in Trade, Insulated Insulated/Non-Insulated, 302 deg F, Malleable Iron, Zinc Electroplated Finish, 2.31 in Dia x 0.69 in H Dimensions

Application

For use with threaded rigid metal conduit and IMC

Standards

ARRA Compliant | CSA C22.2 No.41 | NEMA FB-1 | UL 467 File No. E6581

Features

  • Provides a compact means of grounding conduit through an insulated bushing
  • Can be used with a locknut to terminate conduit at an enclosure
  • Lug used to connect bonding jumper to a neutral bus bar
  • Insulating liner material is self extinguishing
  • The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
  • Lugs not sold separately
  • Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position
  • Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors

Specifications

AC Cable Size:14 to 4 AWG
Country of Origin:MX
Dimensions:2.31 in Dia x 0.69 in H
Finish:Zinc Electroplated
Insulated/Non-Insulated:Insulated
Material:Malleable Iron
Series:GIB-L-AC
Temperature Rating:302 deg F
Trade Size:1-1/2 in

Products Specifications

Brand Name
Appleton
Connection
Threaded
Material
Malleable Iron
Size
1 1/2 in
Type
Insulated Grounding Bushing
