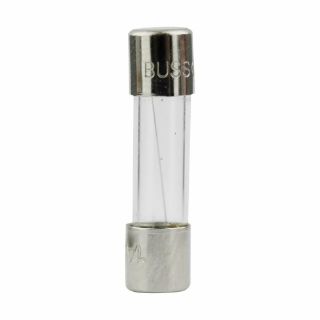

Actual Product May Vary From Image

GMA-10-R BSF

Name: GMA-10-R BSF
Brand: Bussmann
SKU: GMA-10-R BSF
Price: 3.49 USD
Availability: InStock

Bussmann GMA-10-R Low Breaking Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 10 A, 125 VAC, 200 A Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: GMA-10-R

Availability: Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	14
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$3.49

Qty:

Product Details

Brand Name

Bussmann

Type

Low Breaking Small Dimension

Alternate Supplier #

Grainger - 1CJ36

Description

Bussmann Fast Acting Fuse, Low Breaking Small Dimension, Series: GMA, Non-Indicating, Non-Rejection, 10 A, 125 VAC, 200 A Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body

Application

Electronic Circuits

Standards

RoHS 2002/95/EC | UL Guide JDYX2, File No. E19180 Recognized | PSE Approved | CE Certified

Features

Fast acting for maximum component protection
200 A at 125 VAC interrupt rating
60 min maximum at 135%, 2 min maximum at 200% response time

Specifications

Amperage Rating:	10 A
Body Size:	5 mm Dia x 20 mm L
Body Type:	Cylindrical
Country of Origin:	CN
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 2 min
Series:	GMA
Terminal Type:	Ferrule
Voltage Rating:	125 VAC
