GMA-1.6-R BSF

Name: GMA-1.6-R BSF
Brand: Bussmann
SKU: GMA-1.6-R BSF
Price: 3.28 USD
Availability: InStock

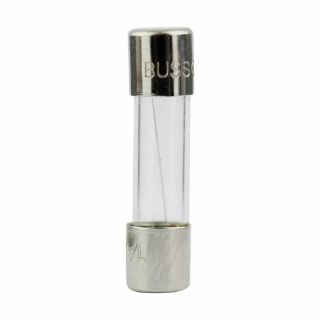

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

GMA-1.6-R

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

$3.28 / EA

Description

Brand Name

Bussmann

Type

Low Breaking Small Dimension

Alternate Supplier #

Grainger - 6F100

Description

Bussmann Fast Acting Fuse, Low Breaking Small Dimension, Series: GMA, Non-Indicating, Non-Rejection, 1.6 A, 250 VAC, 100 A, 10 kA Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm L Body

Application

Electronic Circuits

Standards

RoHS 2002/95/EC | UL 248-14, Guide JDYX, File No. E19180 | CSA Class 1422-01, File No. 53787 | PSE Approved | CE Certified

Features

Fast acting for maximum component protection
100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min maximum at 135%, 2 min maximum at 200% response time

Specifications

Amperage Rating:	1.6 A
Body Size:	5.2 mm Dia x 20 mm H
Body Type:	Cylindrical
Country of Origin:	CN
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 2 min
Series:	GMA
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
