Home / GMC-1-R BSF

GMC-1-R BSF

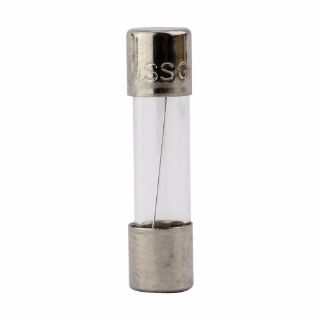

Picture of GMC-1-R BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
GMC-1-R
CBT Inventory
20
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
20
CBT - LEXINGTON
0
Availability:
20 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5.52 / EA

Description

Brand Name

Bussmann

Type

Electronic Medium Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Medium Small Dimension, Series: GMC, Non-Indicating, 1 A, 250 VAC/32 VDC, 35 A at 10 kA Interrupt, 2/60 min Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Glass, 5 mm Dia x 20 mm L Body

Application

Electronic Circuit Applications

Standards

RoHS Compliant | UL 248-14, Guide JDYX, File No. E19180 | CSA Class 1422-01, File No. 53787 | CE Certified | MITI Approvd | KC Mark SU05011-4003

Features

  • 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
  • 60 min maximum at 135%, 2 min maximum at 200% response time

Specifications

Amperage Rating:1 A
Body Size:5 mm Dia x 20 mm L
Body Type:Cylindrical
Country of Origin:CN
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:35 A at 10 kA
Material:Glass
Mounting Type:Clip/Holder
Rejection/Non-Rejection:Non-Rejection
Response Time:2/60 min
Series:GMC
Terminal Type:Ferrule
Voltage Rating:250 VAC

Resources
