GMD-1-R BSF

Name: GMD-1-R BSF
Brand: Bussmann
SKU: GMD-1-R BSF
Price: 6.01 USD
Availability: InStock

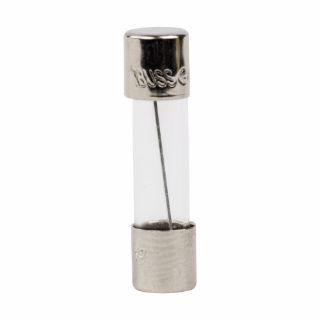

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

GMD-1-R

CBT Inventory

Vendor Inventory

Availability:

6 in stock

Estimated dates are contingent upon manufacturer stock.

$6.01 / EA

Description

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: GMD, Non-Indicating, Non-Rejection, 1 A, 250 VAC/32 VDC, 35 A Interrupt, 60 min, 2 min, 5 s Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 5 mm Dia x 20 mm L Body Size

Application

Electronic Circuit Applications

Standards

RoHS 2011/65/EU | UL 248-14, Guide JDYX, File No. E19180 | CSA Class 1422-01, File No. 53787 | PSE/JET, File No. 1641-31003-1001 | CE Certified

Features

Time delay compatibility for inductive circuits
35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min maximum at 135%, 2 min minimum at 200%, 5 sec maximum at 200% response time

Specifications

Amperage Rating:	1 A
Body Size:	5 mm Dia x 20 mm L
Body Type:	Cylindrical
Country of Origin:	CN
Element:	Single
Frequency Rating:	50 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	35 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 2 min, 5 s
Series:	GMD
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
