Actual Product May Vary From Image

GVFD1 TKN

Name: GVFD1 TKN
Brand: Timken
SKU: GVFD1 TKN
Price: 229.58 USD
Availability: OutOfStock

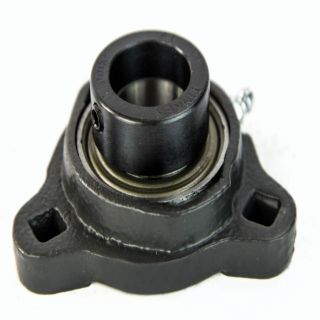

Timken® Fafnir® GVFD1 GVFD Normal Duty Relubricatable Flange Mount Ball Bearing Unit, 1 in Dia Bore, 3 in L Bolt Center-to-Center, 3-Bolt Flange Mount, 3-3/4 in OAL/Dia

Manufacturer: Timken

Manufacturer part number: GVFD1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$229.58

Qty:

Product Details

Brand Name

Fafnir®

Type

Normal Duty Relubricatable

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.

Timken® Fafnir®, GVFD1, Flange Mount Ball Bearing Unit, Normal Duty Relubricatable, Series: GVFD, 1 in Bore, 3 in Bolt Center-to-Center Length, 3-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-11/32 in Overall Depth, 1.343 in Overall Height, Eccentric Locking Device, Steel Bearing, 3490 lb Dynamic/1760 lb Static Load, 5440 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

The malleable-iron flange cartridges provide self-alignment and rigid support
The mounting bolt holes are interchangeable with pressed-steel flangette units of corresponding size

Specifications

Bearing Material:	Steel
Bolt Center-to-Center Length:	3 in
Bore Diameter:	1 in
Finish:	Uncoated
Flange Mounting Type:	3-Bolt
Load Capacity:	3490 lb Dynamic/1760 lb Static
Locking Device:	Eccentric
Maximum Speed:	5440 rpm
Overall Depth:	1-11/32 in
Overall Height:	1.343 in
Overall Length/Diameter:	3-3/4 in
Series:	GVFD
Temperature Rating:	-30 to 275 deg F
