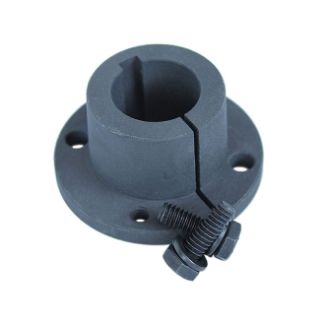

Actual Product May Vary From Image

H 1 3/8 AD

Name: H 1 3/8 AD
Brand: IDC-USA
SKU: H 1 3/8 AD
Price: 17.68 USD
Availability: InStock

IDC Select® IDC H-1-3/8 Finished Bore Split Taper Bushing, 1-3/8 in Dia Bore, 1-5/8 in Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Nodular Graphite Cast Iron

Manufacturer: IDC-USA

Manufacturer part number: IDC H-1-3/8

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	3	3
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$17.68

Qty:

Product Details

Brand Name

IDC Select®

Type

Finished Bore

Description

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® Split Taper Bushing, Finished Bore, 1-3/8 in Bore Dia, 1-5/8 in Barrel Dia, 2 in Bolt Circle, 2-1/2 in Flange Dia, 1/4 in Flange Thickness, 1/4-28 x 3/4 in Screw, 95 in-lb, 1-1/4 in Overall Length, 5/16 x 1/16 in Keyway, Nodular Graphite Cast Iron

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Standard Industrial Applications

Standards

ANSI Specified | ASTM A536/A536-84 | SAE Standard

Features

Easy installation and dismount
Split barrel and flange
Keystock provided with shallow key sizes
H size Split Taper™ bushing
H style bushing

Includes

(2) Cap Screws and Lock Washers

Specifications

Barrel Diameter:	1-5/8 in
Bolt Circle Diameter:	2 in
Bore Diameter:	1-3/8 in
Flange Diameter:	2-1/2 in
Flange Thickness:	1/4 in
Keyway Size:	5/16 x 1/16 in
Material:	Nodular Graphite Cast Iron
Overall Length:	1-1/4 in
Screw Size:	1/4-28 x 3/4 in
Torque Rating:	95 in-lb
