Name: H3C14S02450 DOD
Brand: Dodge
SKU: H3C14S02450 DOD
Price: 1,084.15 USD
Availability: OutOfStock

H3C14S02450 DOD

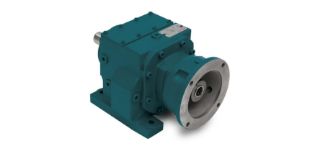

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

H3C14S02450

product.name:

H3C14S02450 DOD

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$1,084.15 / EA

Description

Specifications

Base to Output Center Height:	3.5400
Base to Output Center Height (Unit):	INCH
Case Size:	38
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	2.2100
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	2.2100
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Clamp Collar
Lubrication:	Mineral Standard Temperature
Motor Compatibility:	NEMA Motor, 140TC Frame
Nominal Ratio:	24.5000
Output Configuration:	footed
Output Shaft:	Solid Output
Output Style:	Solid
Overhung Load:	546
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	1947
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	1.0000
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	1.9700
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
