H80Q18 BRN

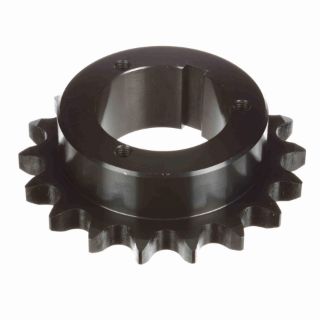

Picture of H80Q18 BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1178326
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$266.27 / EA

Description

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand, 3/4 in Bore Dia, 6.271 in Outside Dia, #80 Chain, 18 Teeth, 1 in Pitch, 5.759 in, 4-1/8 in Hub Dia, 2-1/2 in Length Through Bore, Type 4 Split Taper Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

  • This product has the Browning® exclusive twice the life guarantee
  • Easy installation and removal
  • External key higher torque capacity, aligns bolt holes
  • Provides key-to-key drive
  • Double split barrel improved clamping
  • Solid flange true concentricity
  • Longer barrel better support on the shaft
  • For use with 1 in pitch ANSI chain
  • Split Taper Bushing are available in popular Inch, Metric and Spline bore
  • Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Specifications

Bore Diameter:3/4 in
Bushing Type:Type 4 Split Taper
Chain Size:#80
Country of Origin:CN
Hub Diameter:4-1/8 in
Length Through Bore:2-1/2 in
Material:Steel
Number of Teeth:18
Outside Diameter:6.271 in
Pitch:1 in
Pitch Diameter:5.759 in
