H80Q23 BRN

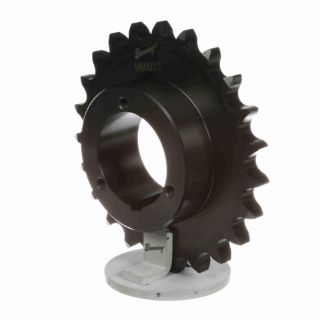

Picture of H80Q23 BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1178383
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$384.58 / EA

Description

Brand Name

Browning®

Type

Single Strand Split Taper Bushed Type 4

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 4, 3/4 in Bore Dia, 7.876 in Outside Dia, #80 Chain, 23 Teeth, 7.344 in, 4-1/8 in Hub Dia, 2.8281 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

  • This product has the Browning® exclusive twice the life guarantee
  • Easy installation and removal
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
  • External key higher torque capacity, aligns bolt holes
  • Provides key-to-key drive
  • Double split barrel improved clamping
  • Solid flange true concentricity
  • Longer barrel better support on the shaft
  • For use with 1 in pitch ANSI chain
  • Split Taper Bushing are available in popular Inch, Metric and Spline bore

Specifications

Bore Diameter:3/4 in
Chain Size:#80
Country of Origin:CN
Hub Diameter:4-1/8 in
Length Through Bore:2.8281 in
Material:Steel
Number of Teeth:23
Outside Diameter:7.876 in
Pitch Diameter:7.344 in
