Name: H8C25S01085 DOD
Brand: Dodge
SKU: H8C25S01085 DOD
Price: 4,140.98 USD
Availability: OutOfStock

H8C25S01085 DOD

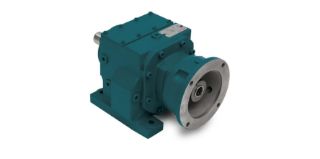

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

H8C25S01085

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$4,140.98 / EA

Description

Specifications

Base to Output Center Height:	7.0900
Base to Output Center Height (Unit):	INCH
Case Size:	88
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	33.5100
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	33.5100
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Clamp Collar
Lubrication:	Mineral Standard Temperature
Motor Compatibility:	NEMA Motor, 250TC Frame
Nominal Ratio:	10.8500
Output Configuration:	footed
Output Shaft:	Solid Output
Output Style:	Solid
Overhung Load:	2252
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	13095
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	2.1250
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	3.9400
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
