HBL1447 HWD

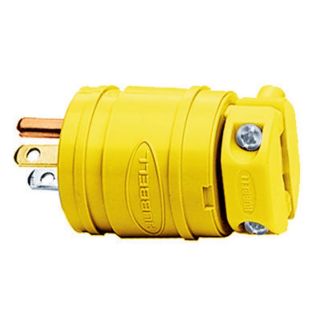

Wiring Device-Kellems Elastogrip® HBL1447 1-Phase Cord Mounted Grounding Watertight Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Manufacturer part number: HBL1447
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 14
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$12.48

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Cord Mounted Grounding Watertight

Alternate Supplier #

Grainger - 5Z867

Description

Wiring Device-Kellems Elastogrip® Straight Blade Plug, 1-Phase Cord Mounted Grounding Watertight, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 2.19 x 1.55 x 2.19 in

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42/280 | UL94 HB Flammability Rating | NEMA WD1/WD5 WD6

Features

  • All portable cord
  • Cord mounted
  • Dust and moisture seal around cord
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • Nylon natural blade holder
  • Polycarbonate to clear retainer
  • 0.06 in brass contact blades, 0.04 in copper alloy ground contact blade
  • #8-32 brass/nickel plated terminal screw for neutral and #8-32 brass, multiple drive (green) ground screw
  • Withstands 2000 VAC minimum dielectric voltage
  • 14 to 10 AWG copper stranded or solid wire size

Specifications

Amperage Rating:15 A
Color:Yellow
Cord Diameter:0.3 to 0.655 in
Country of Origin:US
Dimensions:2.19 in L x 1.56 in W
Enclosure:IP20
Grade:Commercial/Industrial
Horsepower:1/2 hp
Material:Composite/PVC
NEMA Rating:5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
