HBL14W47 HWD

Wiring Device-Kellems Elastogrip® HBL14W47 1-Phase Grounding Male Standard Watertight Weather-Resistant Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Manufacturer part number: HBL14W47
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
9 14 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$34.68

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Male Standard Watertight Weather-Resistant

Alternate Supplier #

Grainger - 1X976

Description

Wiring Device-Kellems Elastogrip® Straight Blade Plug, 1-Phase Grounding Male Standard Watertight Weather-Resistant, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15P, Commercial/Industrial Grade, IP55 Enclosure, 0.3 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/PVC, Yellow, 2.63 in L x 1.56 in W

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42/280 | UL94 HB Flammability Rating | NEMA WD1/WD5

Features

  • All portable cord
  • Cord mounted
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 14 to 10 AWG copper stranded or solid wire size
  • 0.06 in brass contact blades, 0.04 in copper alloy
  • #8-32 brass/nickel plated for neutral terminal screw, #8-2 brass, multiple drive (green) ground screw
  • Integral weatherproofing shroud seals connection between plug and connector
  • Yellow PVC housing, natural nylon blade holder, clear polycarbonate retainer, yellow nylon cord clamp

Specifications

Amperage Rating:15 A
Color:Yellow
Cord Diameter:0.3 to 0.655 in
Country of Origin:US
Dimensions:2.63 in L x 1.56 in W
Enclosure:IP55
Grade:Commercial/Industrial
Horsepower:1/2 hp
Material:Composite/PVC
NEMA Rating:5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
Customers who bought this item also bought

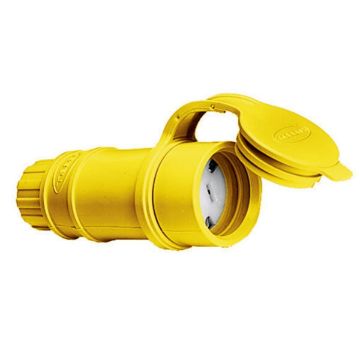

HBL15W47 HWD
