HBL1547 HWD

Name: HBL1547 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL1547 HWD
Price: 23.12 USD
Availability: InStock

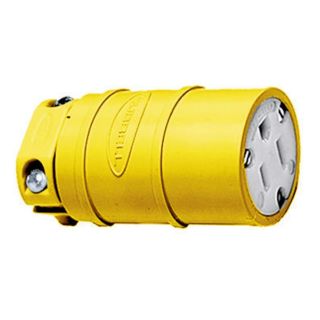

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL1547

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$23.12 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Dusttight Female Grounding Insulated Standard

Alternate Supplier #

Grainger - 5Z872

Description

Wiring Device-Kellems Elastogrip® Straight Blade Connector, Dusttight Female Grounding Insulated Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 3 in L x 1.61 in W

Application

Commercial, Industrial and Indoor Dry Environment Applications

Standards

UL 498 File No. E1706 | UL94 HB Flammability Rating | CSA C22.2 No. 42/280 | NEMA WD1/WD5

Features

Thermoplastic elastomer housing
Moisture seal around cord
Polycarbonate to clear retainer
Nylon to yellow cord clamp
0.06 in brass contact blades, 0.04 in copper alloy ground contact blade
#8-32 brass, multiple drive terminal screw
Nylon to natural contact holder, 0.04 in (1.0) copper alloy power contacts
With stands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
14 to 10 AWG copper stranded or solid conductor only
Ratings are a permanent part of the device product identification
14 to 12 AWG wire size
Cord mounted

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.3 to 0.655 in
Country of Origin:	US
Dimensions:	3 in L x 1.61 in W
Enclosure:	IP20
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Composite
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
