HBL21415B HWD

Name: HBL21415B HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL21415B HWD
Price: 257.77 USD
Availability: InStock

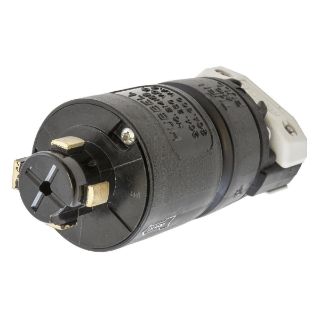

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL21415B

CBT Inventory

Vendor Inventory

Availability:

4 in stock

Estimated dates are contingent upon manufacturer stock.

$257.77 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Heavy Duty Standard Sized Male

Alternate Supplier #

Grainger - 5C994

Description

Wiring Device-Kellems Hubbellock® Locking Plug, 3-Phase Grounding Heavy Duty Standard Sized Male, Series: HBL®, 600 VAC/250 VDC, 20/30 A, 3 Pole, 4 Wires, Industrial Grade, IP30 Enclosure, 0.7 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.33 in L x 0.94 in W x 5.63 in H Dimensions

Standards

UL 498 | CSA Certified

Features

Black thermoset blade holder
Glass reinforced PET cord clamp
Brass blade
Copper lug terminals with steel set screws terminal screw and ground screw
Stainless steel, multi-drive cord clamp screw, body holding screws
Molded-in male contacts are resistant to damage and provide a consistently positive connection
Insulated non-metallic housing enhances safety and abuse resistance
Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
3-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
Auto ejects improperly made connection
Non-NEMA rating

Specifications

Amperage Rating:	20/30 A
Color:	Black/White
Cord Diameter:	0.63 to 1.2 in
Country of Origin:	PR
Dimensions:	2.33 in L x 0.94 in W x 5.63 in H
Enclosure:	IP30
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	600 VAC/250 VDC
