HBL2411 HWD

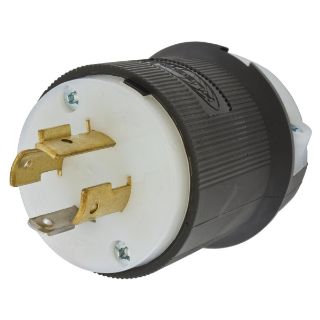

Picture of HBL2411 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2411
CBT Inventory
1
Vendor Inventory
Loading...
CBT - CINCINNATI
1
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$43.43 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Extra Heavy Duty Grounding Standard Sized Male

Alternate Supplier #

Grainger - 4A265

Description

Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Extra Heavy Duty Grounding Standard Sized Male, Series: HBL®, 125/250 VAC, 20 A, 2 hp, 3 Poles, 4 Wires, NEMA L14-20P, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.33 in L x 2.33 in W x 2.75 in H

Application

For extra heavy duty industrial applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Natural white nylon blade holder, cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade, terminal screw and ground screw
  • Steel nickel plated terminal clamp
  • Steel, zinc plated cord clamp screw, body holding screw
  • #10-32 brass (Phillips/slotted/Robertson) terminal screw

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.35 to 1.15 in
Country of Origin:PR
Dimensions:2.33 in L x 2.33 in W x 2.75 in H
Enclosure:IP20
Grade:Industrial
Horsepower:2 hp
Material:Composite
NEMA Rating:L14-20P
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:125/250 VAC
