HBL26W75 HWD

Name: HBL26W75 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL26W75 HWD
Price: 66.02 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL26W75

CBT Inventory

Vendor Inventory

Availability:

1 in stock

Estimated dates are contingent upon manufacturer stock.

$66.02 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Male Watertight

Alternate Supplier #

Grainger - 39AW36

Description

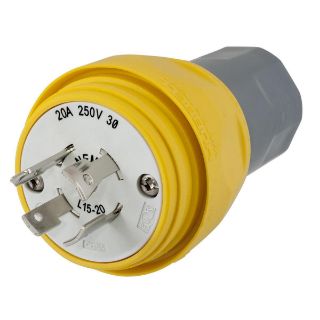

Wiring Device-Kellems Twist-Lock® Elastogrip® Locking Plug, 3-Phase Dust-Tight Grounding Male Watertight, 250 VAC, 20 A, 3 Poles, 4 Wires, NEMA L15-20P, NEMA 3R/3RX/4/4X/6/6P/12/IP66 Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPE, Yellow, 2.51 in L x 2.51 in W x 3.96 in H

Standards

ANSI Certified | CSA C22.2 No. 42 | Meets NEMA WD-1/WD-6 Requirements | UL 498

Features

Smooth body design minimizes collection points simplifying the wash down process
Strain relief nut always seals on the body, minimizing debris collection
Stainless steel hardware and corrosion resistant connection points
The triple bypass seal provides a watertight UL type 4X seal where devices are mated
The cone seal at the cable entrance provides protection from water ingress
Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
Floating cap rings allows for easy removal of dirt and debris

Specifications

Amperage Rating:	20 A
Color:	Yellow
Cord Diameter:	3/8 to 7/8 in
Country of Origin:	PR
Dimensions:	2.51 in L x 2.51 in W x 3.96 in H
Enclosure:	NEMA 3R/3RX/4/4X/6/6P/12/IP66
Grade:	Industrial
Horsepower:	3 hp
Material:	Elastomer/Composite
NEMA Rating:	L15-20P
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
