HBL26W76 HWD

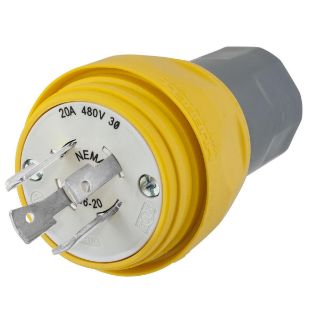

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL26W76 3-Phase Dust-Tight Grounding Male Watertight Locking Plug, 480 VAC, 20 A, 3 Poles, 4 Wires, Yellow
Manufacturer part number: HBL26W76
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
7 2 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$65.33

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Male Watertight

Alternate Supplier #

Grainger - 39AW37

Description

Wiring Device-Kellems Twist-Lock® Elastogrip® Locking Plug, 3-Phase Dust-Tight Grounding Male Watertight, 480 VAC, 20 A, 3 Poles, 4 Wires, NEMA L16-20P, NEMA 3R/3RX/4/4X/6/6P/12/IP66 Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPE, Yellow, 2.51 in L x 2.51 in W x 3.96 in H

Standards

ANSI Certified | CSA C22.2 No. 42 | Meets NEMA WD-1/WD-6 Requirements | UL 498

Features

  • 3500 VAC minimum withstand dielectric voltage
  • Rated for current interruption per UL498
  • 30 deg maximum at rated current temperature rise
  • All exposed materials are UV stabilized
  • White nylon blade holder
  • Clear polycarbonate terminal retainer material
  • Nickel plated brass blades
  • White nylon core
  • Black elastomeric bushing and cone seal
  • Nylon gotcha ring
  • PBT strain relief nut
  • Nickel plated brass terminal screw
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • 3-phase

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:3/8 to 7/8 in
Country of Origin:CN
Dimensions:2.51 in L x 2.51 in W x 3.96 in H
Enclosure:NEMA 3R/3RX/4/4X/6/6P/12/IP66
Grade:Industrial
Horsepower:5 hp
Material:Elastomer/Composite
NEMA Rating:L16-20P
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:480 VAC
