HBL2721S HWD

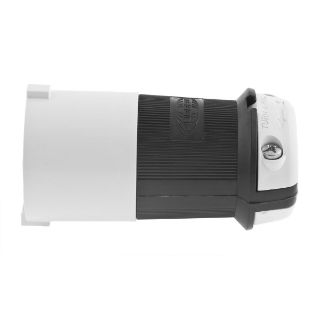

Picture of HBL2721S HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2721S
CBT Inventory
1
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
1
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$67.25 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Male

Alternate Supplier #

Grainger - 4CV44

Description

Wiring Device-Kellems Twist-Lock® Locking Plug, 3-Phase Grounding Male Standard Cord Mount, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30P NEMA Rating, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.33 x 2.33 x 4.21 in

Application

Dry Locations, Power Connection and Indoor Applications

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42/0.6 | UL94HB Flammability Rating | Federal Specification W-C-596

Features

  • Natural white nylon blade holder
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multiple drive terminal screw
  • #10-32 bronze (green finish) multiple drive ground screw
  • Stainless steel cord clamp screws
  • Molded in or stamped on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Ribbed nylon housing provides a secure grip that impact and chemical resistant
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants

Specifications

Amperage Rating:30 A
Color:Black/White
Cord Diameter:0.35 to 1.15 in
Country of Origin:PR
Dimensions:2.04 in Dia x 3.77 in L
Enclosure:IP20
Grade:Industrial
Horsepower:3 hp
Material:Composite
NEMA Rating:L15-30P
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
