Actual Product May Vary From Image

HBL2721SW HWD

Name: HBL2721SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2721SW HWD
Price: 167.16 USD
Availability: OutOfStock

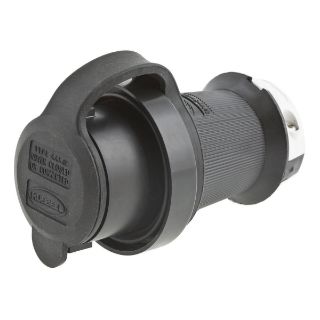

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2721SW 3-Phase Extra Heavy Duty Grounding Watertight Male Locking Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2721SW

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$167.16

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Extra Heavy Duty Grounding Watertight Male

Alternate Supplier #

Grainger - 4CV45

Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Plug, 3-Phase Extra Heavy Duty Grounding Watertight Male, Series: HBL®, 250 VAC, 30 A, 7-1/2 hp, 3 Poles, 4 Wires, NEMA L15-30P, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Polybutylene Terephthalate, Black/White, 2.94 in L x 2.94 in W x 4.4 in H

Application

Power Connection Applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

Impact resistant shroud protects blades against bending and breaking
Reduces exposure to arcing when connecting or disconnecting under load
Superior cord grip design protects terminations from excess strain
Natural white nylon blade holder
Clear polycarbonate terminal retainer
Impact modified PBT cord clamp
Brass blade, terminal clamp, terminal screw, ground screw
Steel nickel plated terminal clamp
Steel, zinc plated cord clamp screw, body holding screw
Withstands 2000 VAC minimum dielectric voltage

Specifications

Amperage Rating:	30 A
Color:	Black/White
Cord Diameter:	0.35 to 1.15 in
Country of Origin:	US
Dimensions:	2.94 in L x 2.94 in W x 4.4 in H
Enclosure:	NEMA 4/4X/12/IP66
Grade:	Industrial
Horsepower:	3 hp
Material:	Composite
NEMA Rating:	L15-30P
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
