HBL2723 HWD

Name: HBL2723 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2723 HWD
Price: 122.63 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2723

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$122.63 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Standard Heavy Duty Insulated

Alternate Supplier #

Grainger - 4A272

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, 3-Phase Female Grounding Standard Heavy Duty Insulated, Series: HBL®, 250 VAC, 30 A, 3 hp, 3 Poles, 4 Wires, NEMA L15-30R, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.22 in Dia x 3.84 in L

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

Superior cord grip design protects terminations from excess strain
Clear, funnel shaped wire entry for ease of termination
Integral dust shield protects wiring chamber from dust or contaminants
Clear polycarbonate terminal retainer
Natural white nylon cord clamp, body contact carrier
Steel nickel plated terminal clamp
Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
Steel zinc plated cord clamp screw, body holding screw
30 A 10 AWG wire size
Withstands 2000 VAC minimum dielectric voltage
Cord mounted
Insulated body

Specifications

Amperage Rating:	30 A
Color:	Black/White
Cord Diameter:	0.35 to 1.15 in
Country of Origin:	PR
Dimensions:	2.22 in Dia x 3.84 in L
Enclosure:	IP20
Grade:	Industrial
Horsepower:	3 hp
Material:	Composite
NEMA Rating:	L15-30R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	250 VAC

Customers who bought this item also bought

HBL2421S HWD

MFG: Hubbell Wiring Device-Kellems

MFG#:HBL2421S

Info:Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2421S 3-Phase Grounding Male Locking Plug, 250 Delta VAC, 20 A, 3 Poles, 4 Wires, Black/White

ATTENTION: This item is subject to a price increase beginning 02/2025. Contact your Account Manager for specific details.

$ -.--

HBL2721S HWD

MFG: Hubbell Wiring Device-Kellems

MFG#:HBL2721S

Info:Wiring Device-Kellems Twist-Lock® HBL2721S 3-Phase Grounding Male Standard Cord Mount Locking Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/White

ATTENTION: This item is subject to a price increase beginning 02/2025. Contact your Account Manager for specific details.

$ -.--

HBL5266C HWD

MFG: Hubbell Wiring Device-Kellems

MFG#:HBL5266C

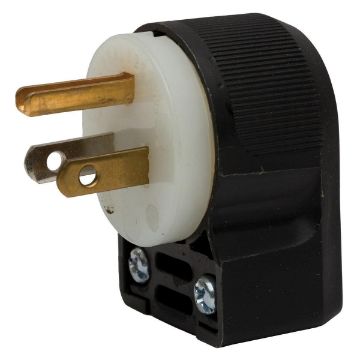

Info:Wiring Device-Kellems Insulgrip® HBL5266C 1-Phase Grounding Heavy Duty Male Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
