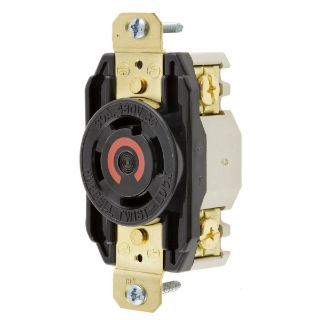

Picture of HBL2730 HWD
Actual Product May Vary From Image

HBL2730 HWD

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2730 3-Phase Grounding Standard Screw Mount Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Black
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL2730
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 2
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$81.78

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Standard Screw Mount

Alternate Supplier #

Grainger - 6A658
Grainger - 6A658

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, 3-Phase Grounding Standard Screw Mount, 480 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R/WD1/WD5 NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.31 in

Application

Heavy Duty Industrial Applications

Standards

RoHS Compliant | UL 498 | Federal Specification WC596 | CSA C22.2 No. 42/ 0.17 | UL94 Flammability Rating

Features

  • High impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Withstands 2000 VAC minimum dielectric voltage
  • IP20 suitability moisture resistance
  • Nylon face, glass reinforced thermoplastic polyester (RTP) base, brass contacts/mounting strap, no 10 - 32 brass terminal screws
  • Flush mount
  • Indoor dry unless protected by additional means
  • Screw mount
  • 12 to 8 AWG wire

Specifications

Amperage Rating:30 A
Color:Black
Country of Origin:US
Dimensions:3.28 x 1.7 x 1.31 in
Enclosure:IP20
Grade:Industrial
Horsepower:10 hp
Material:Nylon
NEMA Rating:L16-30R/WD1/WD5
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:480 VAC
