HBL27W75 HWD

Name: HBL27W75 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL27W75 HWD
Price: 87.03 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL27W75

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$87.03 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Isolated Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight

Alternate Supplier #

Grainger - 39AW43

Description

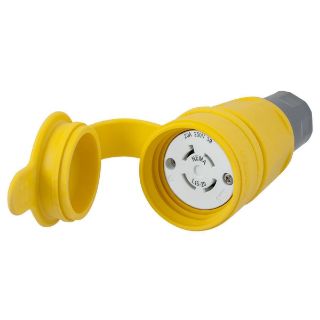

Wiring Device-Kellems Twist-Lock® Elastogrip® Female Connector, 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight, 250 Delta VAC, 20 A, 3 Pole, 4 Wires, L15-20R/WD1/WD6 NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.51 x 2.51 x 5.69 in

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42 | ANSI Approved

Features

Smooth body design minimizes collection points simplifying the wash down process
Strain relief nut always seals on the body, minimizing debris collection
Stainless steel hardware and corrosion resistant connection points
3/8 to 7/8 in Dia cord
White nylon contact carrier
Clear polycarbonate terminal retainer
Nickel plated brass contacts
White nylon core
Black elastomer bushing and cone seal
Nylon GOTCHA™ ring
PBT strain relief nut
Nickel plated brass terminal screw
Rated for current interruption per UL 498
2500 VAC dielectric voltage
30 deg C maximum per UL 498 at rated current temperature rise
All exposed materials are UV stabilized

Specifications

Amperage Rating:	20 A
Color:	Yellow
Cord Diameter:	3/8 to 7/8 in
Country of Origin:	CN
Dimensions:	2.51 in Dia x 5.69 in L
Enclosure:	NEMA 4/4X/6/6P/12
Grade:	Commercial/Industrial
Horsepower:	3 hp
Material:	Elastomer/Composite
NEMA Rating:	L15-20R/WD1/WD6
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	250 Delta VAC
