HBL320C6W HWD

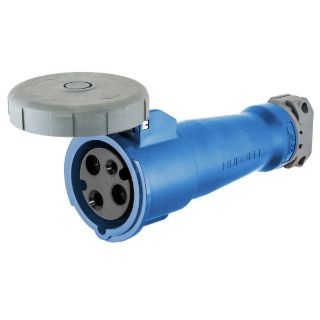

Picture of HBL320C6W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL320C6W
product.name:
HBL320C6W HWD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$259.33 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Standard Watertight

Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting/line of sight disconnecting means.
Wiring Device-Kellems Pin and Sleeve Connector, Female Grounding Heavy Duty Insulated Standard Watertight, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite/Nylon, Blue, 3.33 in Dia x 7.49 in L

Application

For high ampacity connections

Standards

RoHS Compliant | UL 498 | UL File No. E146033 | IEC 309-1/309-2 | CSA File No. LR280C

Features

  • Self-closing gasketed cover
  • Supertough® insulated non-metallic house for impact and chemical resistance
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
  • Reinforced thermoplastic polyester cord clamps and covers
  • Withstands 3000 VAC minimum dielectric voltage

Specifications

Amperage Rating:20 A
Color:Blue
Country of Origin:PR
Dimensions:3.33 in Dia x 7.49 in L
Enclosure:IP67
Grade:Industrial
Horsepower:2 hp
Material:Composite
NEMA Rating:4X
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:250 VAC
