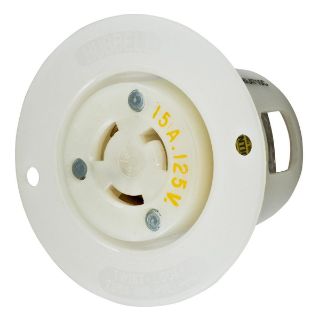

Picture of HBL4715C HWD
Actual Product May Vary From Image

HBL4715C HWD

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4715C 1-Phase Flanged Grounding Single Screw Mount Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL4715C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$32.42

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Flanged Grounding Single Screw Mount

Alternate Supplier #

Grainger - 3D168

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, 1-Phase Flanged Grounding Single Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, L6-15R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.56 x 2.56 x 1.72 in

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Impact resistant thermoplastic construction
  • Back wired terminations for ease of installation
  • #10-32 multiple drive terminal screw (Phillips/slotted/Robertson)
  • Withstands 2000 VAC minimum dielectric voltage
  • Clear polycarbonate terminal retainer
  • Brass blade, terminal screw and ground screw
  • 0.062 in steel nickel plated terminal clamp
  • Steel, zinc plated mounting screw
  • Natural white nylon body contact carrier, flanged casing
  • Nickel plated brass round head mounting screw
  • 0.032 in bronze ground contact
  • Screw mounting
  • 14 to 12 AWG wire size

Includes

Mounting Screws and Cover

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:US
Dimensions:2.56 in Dia
Enclosure:NEMA 4X/12/IP20
Grade:Industrial
Horsepower:1/2 hp
Material:Composite/Thermoplastic
NEMA Rating:L6-15R
Number of Poles:2
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
