HBL5125R6W HWD

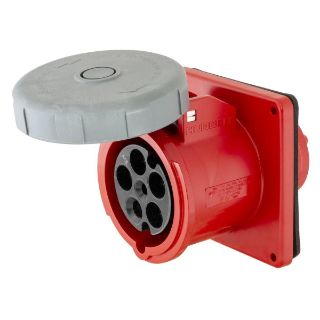

Picture of HBL5125R6W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL5125R6W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Standard Service Single Flanged

Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Wiring Device-Kellems HBL® Pin and Sleeve Receptacle, Grounding Single Flanged Standard, 220/380 to 240/415 VAC, 125 A, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Red, 5-1/2 in L x 5-1/2 in W Dimensions

Application

High Ampacity Watertight Connection Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CSA C22.2 File No. 182.1 | IEC 309-1 | 309-2 | UL 498 | 1682 File No. E146032

Features

  • Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
  • Amperage/voltage rating and catalog number molded in housing for easy identification
  • Lockout tagout, tapered opening on plug shroud accommodates up to 3/8 in lock shackle diameter
  • Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
  • Super tough plug shroud protects pins from deforming from physical abuse
  • Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
  • Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
  • Molded thermoset polyester provides high resistance to electrical tracking
  • Withstands higher temperatures which may result from overload or arcing
  • Thermoset properties provide dimensional stability for this critical assembly
  • Feature large hex head stainless steel screws which provide higher torque levels for secure terminations
  • Corrosion resistant self-closing gasketed cover
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Super tough insulated non-metallic house for impact and chemical resistance
  • Multi contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise

Specifications

Amperage Rating:125 A
Color:Red
Country of Origin:US
Dimensions:5-1/2 in L x 5-1/2 in W
Enclosure:IP67
Grade:Industrial
Material:Composite/Thermoplastic
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:220/380 to 240/415 VAC
