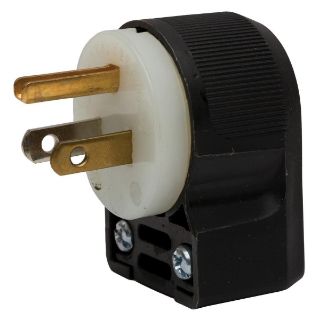

Actual Product May Vary From Image

HBL5266CA HWD

Name: HBL5266CA HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5266CA HWD
Price: 27.96 USD
Availability: InStock

Wiring Device-Kellems Insulgrip® HBL5266CA 1-Phase 4-Position Angled Grounding Heavy Duty Male Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL5266CA

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
3	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$27.96

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase 4-Position Angled Grounding Heavy Duty Male Standard

Alternate Supplier #

Grainger - 6A665

Description

Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase 4-Position Angled Grounding Heavy Duty Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15P, Commercial/Industrial Grade, IP20 Enclosure, 0.325 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Black/White, 2.11 in L x 1.53 in W x 1.22 in H

Application

Dry Location and Indoor Applications

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42/280 | UL94 HB Flammability Rating | NEMA WD1/WD5

Features

All portable cord
Cord mounted
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
16 to 10 AWG copper stranded or solid wire size
0.06 in brass contact blades, 0.04 in copper alloy
#8-32 brass/nickel plated for neutral terminal screw, #8-32 brass, multiple drive (green) ground screw
Low profile design
Roomy wiring chamber provides ample space for wiring
Black nylon housing, clear polycarbonate retainer, natural nylon blade holder and cord clamp

Specifications

Amperage Rating:	15 A
Color:	Black/White
Cord Diameter:	0.325 to 0.655 in
Country of Origin:	US
Dimensions:	1.53 x 1.22 x 2.11 in
Enclosure:	IP20
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Composite/Nylon
NEMA Rating:	5-15P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC

Customers who bought this item also bought

HBL2723 HWD

MFG: Hubbell Wiring Device-Kellems

MFG#:HBL2723

Info:Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2723 3-Phase Female Grounding Standard Heavy Duty Insulated Locking Connector, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/White

$ -.--

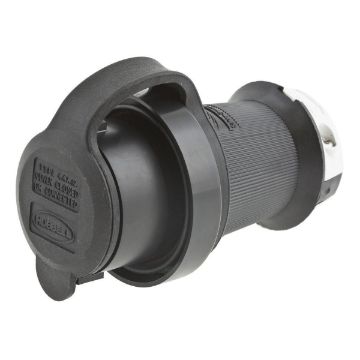

HBL2721SW HWD
